3D CAD - E26

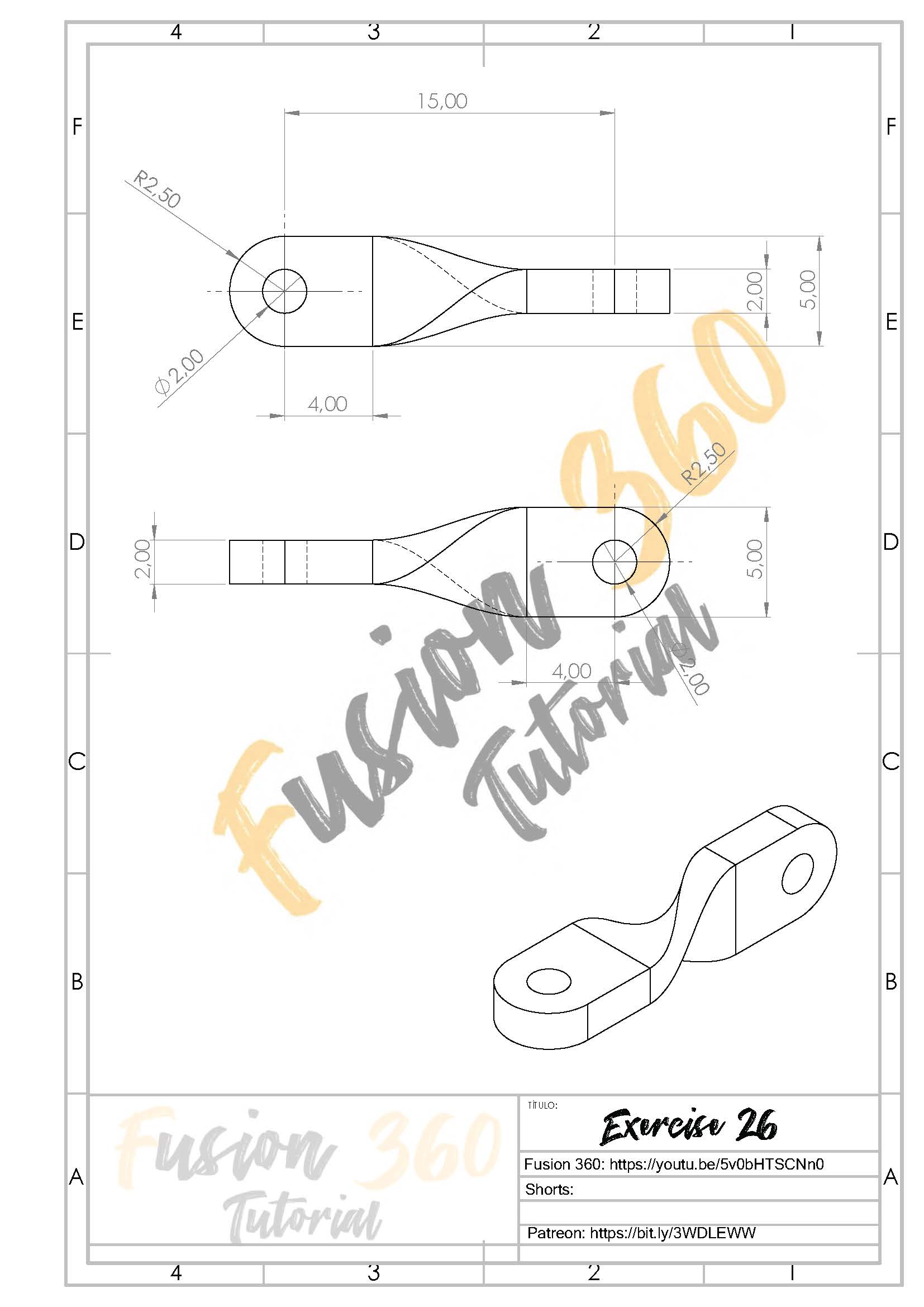

3D CAD for Beginners - Exercise 26

2D Sketch

In this tutorial we'll use the features:

1.Extrude: add or removes material from the part. 2.Loft: The loft feature creates a shape by making transitions between multiple profiles and guide curves. This tool is very valuable for modeling complex surfaces.

All dimensions are in mm/g/s/ISO ---------------------------------------------------------------------------------------------
