Fusion 360 - E101

     Fusion 360 Tutorial - Exercise 100

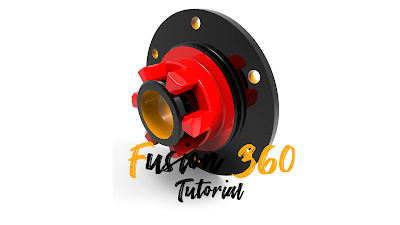

GearBox - Rear Cover

You can download the Step by Step here : http://bit.ly/3RQj5V6

The Tutorial video : https://youtu.be/vqqFBraSojw

In this tutorial we'll use the features:

1.1. Revolve : creates a body by revolving a selected profile or model geometry around an axis. 2. Extrude : add or removes material from the part. 3. Hole : Creates a hole based on user-specified values and selections 4. FIllet : creates a rounded internal or external face on the part. 5. Circular pattern: Duplicates faces, features, bodies, or components an arranges them in an arc or circular pattern 6. Chamfer: The chamfer tool creates a beveled feature on selected edges, faces, or a vertex.

All dimensions are in mm/g/s/ISO ---------------------------------------------------------------------------------------------
